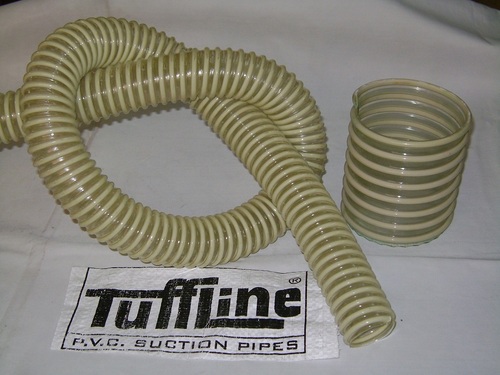

Flexible Duct Hose

Flexible Duct  Hose
Flexible Duct Hose
Product Code : 01
Product Description

Capitalizing on our immense technical expertise, we have been affianced in offering a supreme grade range of Flexible Duct Hose. In order to manufacture this product as per the set industry standards, our professionals use excellent quality raw material and latest technology. The offered product is used for transferring chemicals, liquids and other fluids in various industries. Offered Flexible Duct Hose is available in standard as well as customized options at industry leading prices.

Features:

  • Heat resistance

  • High strength

  • Fine finish

  • Durability


Service: Designed for bulk handling and conveying material such as resin, tea leaves, pellet, granular, or powder materials, as well as liquid, solid or semi-solid food products.
Construction: Clear, flexible and highly abrasion resistant with a clear rigid spiral reinforcement. Smooth bore and convoluted cover for flexibility.

Specification
Size
(mm)
Inside Diameter Within D
Parameter
(mm)
Thickness
(mm)
l
(mm)
D
(mm)
Length/Roll
(meter)
19 (3/4") 19.0 ± 1.0 .7 8 2 30
25 (1") 25.0 ± 1.0 .7 8 2 30
31 (1 1/4") 31.0 ± 1.0 .9 8 2.5 30
38 (1 1/2") 38.0 ± 1.0 1.0 8 2.5 30
50 (2") 50.8 ± 1.0 2.2 9.0 3.0 30
63 (2 1/2") 63.5 ± 1.0 2.5 12.0 3.0 30
75 (3") 76.2 ± 1.0 3.0 12.0 3.0 30
100 (4") 101.6 ± 1.5 3.5 12.0 3.5 30
125 (5") 127.0 ± 1.5 3.8 11.5 3.5 15
150 (6") 152.4 ± 1.5 4.5 11.5 4.0 15
200 (8") 203.2 ± 2.0 5.5 12.0 4.5 15
250 (10") 254.0 ± 2.0 6.0 12.5 5.0 6
300 (12") 302 ± 2.0 6.5 13.5 6.0 6
